[Reading Note]: Asynchronous Stochastic Approximation and Q-Learning

• Proved the convergence of Q-learning algorithm

• Comparison with previous works

  • Expected reduction of a smooth Lyapunov function (Poljak & Tsypkin, 1973)

    • Undiscounted problems is not proven

  • "averaging" techniques that lead to an ordinary differential equation (Kushner & Clark, 1978)

    • Unnatural assumptions for Q-learning

  • This paper: Asynchronous convergence theory of Bertsekas (1982) and Bertsekas et al. (1989)

    • Naturally covered undiscounted setting

• What's that? → A family of iterative methods typically used for root-finding problems

• Basic definitions

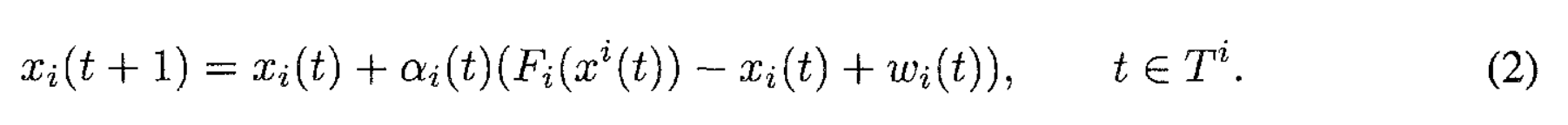

  $$x(t+1)=x(t)+\alpha(t)\left(F\left(x(t)\right)-x(t)+w(t)\right)$$

  • $\alpha(t)$ : step size
  • $F$: function of $\R^d \to \R^d$
  • $w(t)$: noise

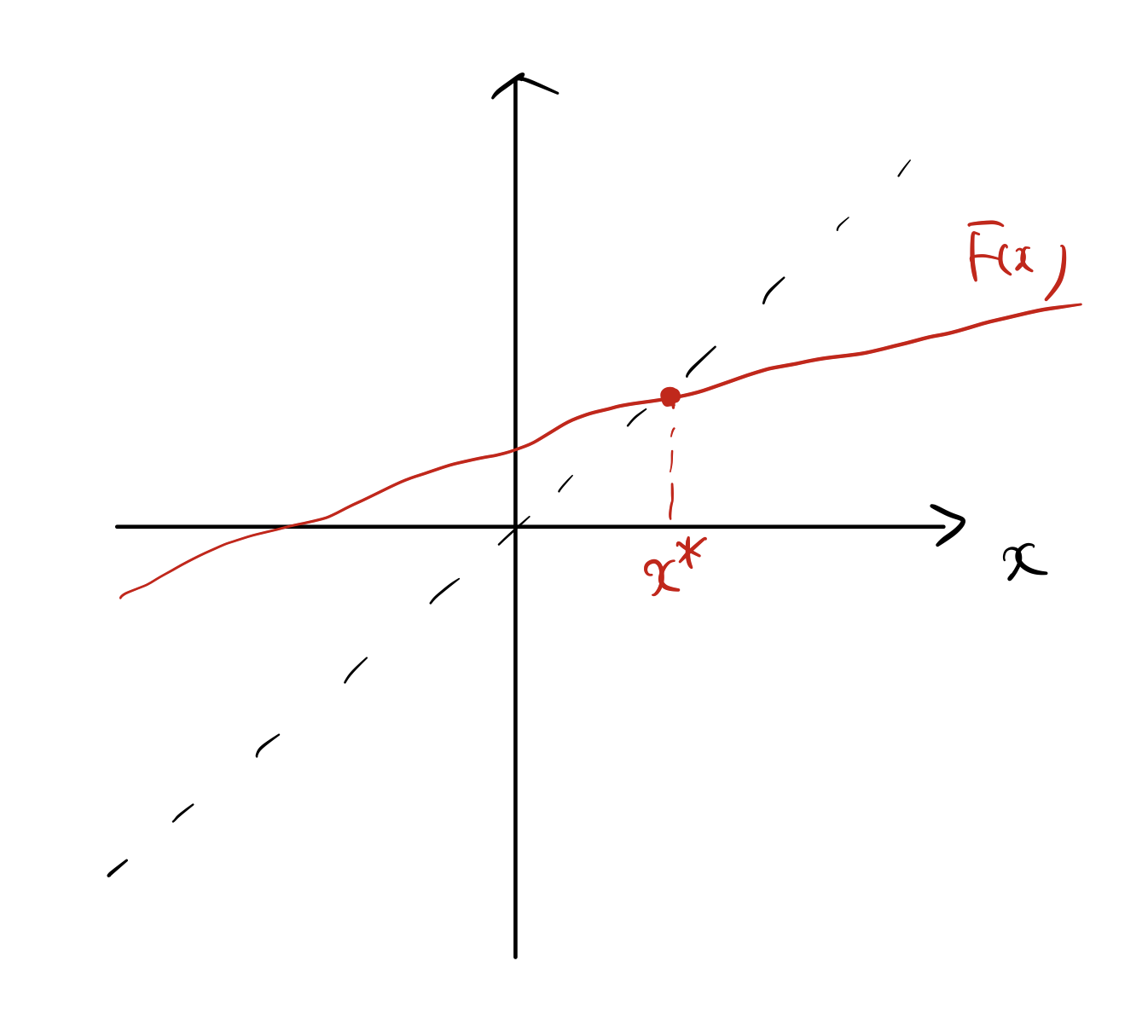

• $x(t)$ converges to the stationary point of $F$, i.e., $F(x^*)= x^*$ (Theorem 2)

• Asynchronous update
  • $\tau_{j}^{i}(t)$: Suppose $i$ is updated at $t$, the last time $j$ was update at $\tau_{j}^{i}(t)$

  💡

  They claim that proof of convergence under this asynchronous setting is innovative. But I could not figure it out why it is innovative. I feel we can ignore this setting by assuming Assumption 1: $\lim _{t \rightarrow \infty} \tau_{j}^{i}(t)=\infty$.

• Assumptions

  • Assumption 1: (About outdated case)

    • (For all $i$ ， $j$，$\lim _{t \rightarrow \infty} \tau_{j}^{i}(t)=\infty$ with probability 1)

  • Assumption 2: (About noise)

    • ( $x(0)$ is $\mathcal{F}(0)$-measurable )

    • ( For all $t$，$w(t)$ is $\mathcal{F}(t+1)$-measurable )

    • For all $t$，$\alpha(t)$ is $\mathcal{F}(t)$-measurable

      💡

      The fact $\alpha(t)$ is a random variable is this paper's contribution

    • ( For all $i$, $j$, $\tau_{j}^{i}(t)$ is $\mathcal{F}(t)$-measurable)

    • For all $t$，$E\left[w(t) \mid \mathcal{F}(t)\right]=0$

    • There exist constants $A$，$B$ such that

      $$E\left[w_{i}^{2}(t) \mid \mathcal{F}(t)\right] \leq A+B \max _{j} \left|x_{j}(t)\right|^{2}, \quad \forall i, t$$

  • Assumption 3: (About stepsize)

    • $\sum_{t=0}^{\infty} \alpha_{i}(t)=\infty$ for all $i$

    • $\sum_{t=0}^{\infty} \alpha_{i}^{2}(t) \leq C$ for all $i$

  • Assumption 4: (About $F$)

    • $F$ is monotone: if $x \leq y$, then $F(x) \leq F(y)$.
      • $x\leq y$ means $\forall i:x_i\leq y_i$

    • $F$ is continuous

    • $F$ has a unique fixed point $x^*$: $F(x^*) = x^*$

    • If $e \in \Re^{n}$ is the vector with all components equal to 1, and $r$ is a positive scalar, then (basically Lipschitz)

      $$F(x)-r e \leq F(x-r e) \leq F(x+r e) \leq F(x)+r e$$



Statement : $x(t)$ converges to $x^{*}$

• Define $\{U^{k}\}$ and $\{L^{k}\}$

  • Because $x(t)$ is bounded there always exists a constant $r$

    $$x^{*}-r e \leq x(t) \leq x^{*}+r e$$

    • where $e = (1,1,\ldots,1)$

  • $L^{0}:=\left(L_{1}^{0}, \ldots, L_{n}^{0}\right)=x^{*}-r e$

  • $U^{0}:=\left(U_{1}^{0}, \ldots, U_{n}^{0}\right)=x^{*}+r e$

  • $U^{k+1}=\frac{U^{k}+F\left(U^{k}\right)}{2}$

  • $L^{k+1}=\frac{L^{k}+F\left(L^{k}\right)}{2}$

• Lemma 4: $F\left(U^{k}\right) \leq U^{k+1} \leq U^{k}$ and $F\left(L^{k}\right) \geq L^{k+1} \geq L^{k}$

• Lemma 5: $\text { The sequences }\left\{U^{k}\right\} \text { and }\left\{L^{k}\right\} \text { converge to } x^{*}$

• Show $L^k \leq x(t) \leq U^k$

  • Introduce $W_{i}(t)，W_{i}\left(t ; t_{0}\right)，X_{i}(t)$

    • $t_k$: $t$ of inductive hypothesis

    • $W(t)$
      • $W(0) = 0$
      • $W(t+1)=\left(1-\alpha(t)\right) W(t)+\alpha(t) w(t)$
      • By Lemma 1，$\lim _{t \rightarrow \infty} W_{i}(t)=0$

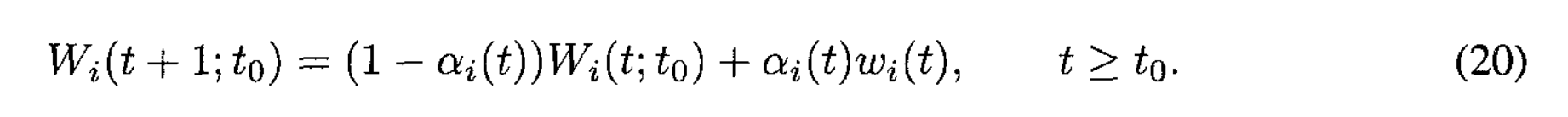

    • $W\left(t ; t_{0}\right)$ for an arbitrary $t_0$
      • $W\left(t_0 ; t_{0}\right):= 0$
      • $W\left(t+1 ; t_{0}\right):=\left(1-\alpha(t)\right) W\left(t ; t_{0}\right)+\alpha(t) w(t)$
      • By Lemma 2，$\lim _{t \rightarrow \infty} W_{i}\left(t ; t_{0}\right)=0$

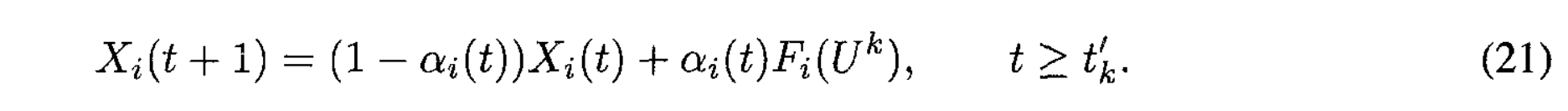

    • $X_{i}(t), t \geq t_{k}$
      • $X\left(t_{k}\right):=U^{k}$
      • $X(t+1):=\left(1-\alpha(t)\right) X(t)+\alpha(t) F\left(U^{k}\right), \quad t \geq t_{k}$

  • Lemma 6: $x_{i}(t) \leq X_{i}(t)+W_{i}\left(t ; t_{k}^{\prime}\right), \quad \forall t \geq t_{k}$

    $$\begin{aligned} x_{i}(t+1) &=x_{i}(t)+\alpha_{i}(t)\left(F_{i}\left(x_{i}(t)\right)-x_{i}(t)+w_{i}(t)\right) \\ &=(1-\alpha_{i})x_{i}(t)+\alpha_{i}(t)\left(F_{i}\left(x_{i}(t)\right)+w_{i}(t)\right) \\ &=(1-\alpha_{i})x_{i}(t)+\alpha_{i}(t)\left(F_{i}\left(U^k\right)+w_{i}(t)\right) (\because \textrm{ I.H.})\\ & \leq\left(1-\alpha_{i}(t)\right)\left(X_{i}(t)+W_{i}\left(t ; t_{k}^{\prime}\right)\right)+\alpha_{i}(t) \left(F_{i}\left(U^{k}\right)+ w_{i}(t)\right) \\ & =\left(1-\alpha_{i}(t)\right)X_{i}(t)+\alpha_{i}(t) F_{i}\left(U^{k}\right)+\left(1-\alpha_{i}(t)\right)W_{i}\left(t ; t_{k}^{\prime}\right)+\alpha_{i}(t) w_{i}(t) \\ &=X_{i}(t+1)+W_{i}\left(t+1 ; t_{k}^{\prime}\right) \end{aligned}$$

    • Referece









  • Additional definition: $\delta_{k}$

    • $\delta_{k}$:= smallest positive element of $\left(U_{i}^{k}-F_{i}\left(U^{k}\right)\right) / 4$

    • Define $t_{k}^{\prime \prime}$
      • First condition

        $$\prod_{t=t_{k}^{\prime}}^{t_{k}^{\prime \prime}-1}\left(1-\alpha_{i}(t)\right) \leq \frac{1}{4}$$

        • Why does such $t_{k}^{\prime \prime}$ exist?
      • Second condition

        $$W_{i}\left(t ; t_{k}^{\prime}\right) \leq \delta_{k}\quad\forall t \geq t_{k}^{\prime \prime}$$

        💡

        Because $\lim _{t \rightarrow \infty} W_{i}\left(t ; t_{0}\right)=0$, $t_{k}^{\prime \prime}$ exists

        • By Lemma 2，$\lim _{t \rightarrow \infty} W_{i}\left(t ; t_{0}\right)=0$

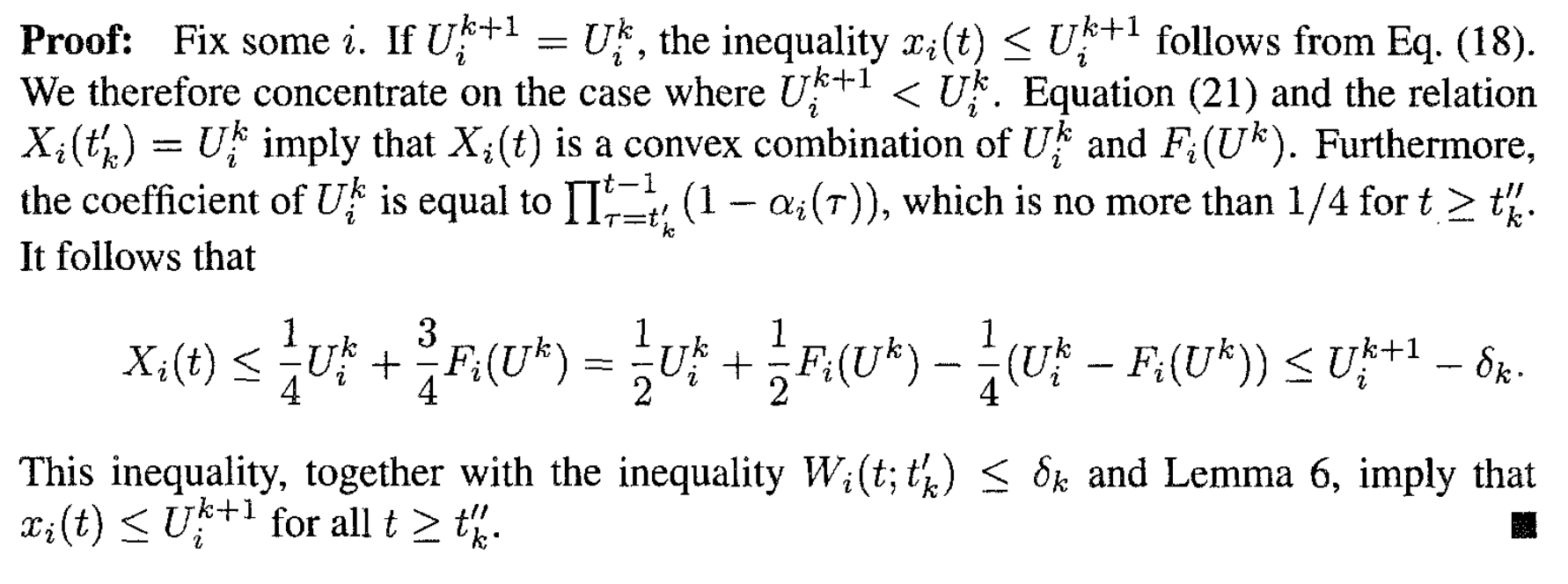

  • Lemma 7: $\text { We have } x_{i}(t) \leq U_{i}^{k+1}, \text { for all } i \text { and } t \geq t_{k}^{\prime \prime}$



• Definitions

  • $S$: Finite state space

  • $U(i)$: action available at state $i$

  • $p_{i j}(u), u \in U(i), j \in S$
    • at state $i$, took action $u$, transit to $j$ with prob $p_{i j}(u)$.

  • $c_{i u}$(random variable )
    • If you take action $u$ on state $i$, you suffer cost $c_{i u}$
    • $c_{i u}$ is not bounded ← important
    • But variance is bounded

  • Stationary policy $\pi$:
    • A function defined on $S$ such that $\pi(i) \in U(i)$ for all $i \in S$.
    • Take state return action

  • Absorbing state:
    • Ex) Suppose state 1 is absorbing: $p_{11}(u)=1$ and $c_{1 u}=0 \text { for all } u \in U(1)$

    💡

    Once you enter 1, you will stay there forever

  • Proper stationary policy:
    • Stationary policy that converges to absorbing state with probability 1 when $T\to \infty$

  • $V_{i}^{\pi}$:

    $$V_{i}^{\pi}=\limsup _{T \rightarrow \infty} E\left[\sum_{t=0}^{T} \beta^{t} c_{s^{\pi}(t), \pi\left(s^{\pi}(t)\right)} \mid s^{\pi}(0)=i\right]$$

    💡

    Maximum expected cost in the future when you are at state $i$

    • $V_{i}^{*}=\inf V_{i}^{\pi}$

  • $\beta \in[0,1]$: discount factor
    • Undiscounted case $(\beta=1)$
    • Discounted case ($\beta < 1$)

• Assumption 7

  • There exists at least one proper stationary policy.

  • Every improper stationary policy yields infinite expected cost for at least one initial state.

  💡

  Necessary for the convergence of $\beta < 1$ case

  • The fact this assumption is natural is their contribution.

  • Work before this required all policies have to be proper

• Given a dynamic programming operator $T$:

  $$T_{i}(V)=\min _{u \in U(i)}\left\{E\left[c_{i u}\right]+\beta \sum_{j \in S} p_{i j}(u) V_{j}\right\}$$

• Q-learning is a method to compute the optimal $V^{*}$ based on the assumption that $V^{*}$ satisfies the following equation (Bellman principle)

• update rule is as follows

  $$Q_{i u}(t+1)=Q_{i u}(t)+\alpha_{i u}(t)\left[c_{i u}+\beta \min _{v \in U(s(i, u))} Q_{s(i, u), v}(t)-Q_{i u}(t)\right]$$

• Correspondence to Stochastic approximation

  • Q-learning's update rule can be formulated as the following stochastic approximation

    $$x_{i}(t+1)=x_{i}(t)+\alpha_{i}(t)\left(F_{i}\left(x^{i}(t)\right)-x_{i}(t)+w_{i}(t)\right)$$

  • with the following definitions

    $$F_{i u}(Q)=E\left[c_{i u}\right]+\beta E\left[\min _{v \in U(s(i, u))} Q_{s(i, u), v}\right]$$

    $$w_{i u}(t)=c_{i u}-E\left[c_{i u}\right]+\min _{v \in U(s(i, u))} Q_{s(i, u), v}(t)-E\left[\min _{v \in U(s(i, u))} Q_{s(i, u), v}(t) \mid \mathcal{F}(t)\right]$$

• Does $F_{iu}(Q)$ satisfies Assumption 4?

  • It is known that dynamic operator $T$ satisfies Assumption 4 $\Leftrightarrow$ $F$ satisfies Assumption 4

  • So Does $T$ satisfies Assumption 4?

  • When $\beta < 1$
    • $T$ is contraction (well known)→ satisfies Assumption 4

      💡

      $f$ is a contraction mapping if

      $$\forall x,y: d(f(x), f(y)) \leq k d(x, y)$$

  • When $\beta = 1$
    • All policies are proper

      There exists a vector $v>0$ such that $T$ is a contraction with respect to the norm $\|\cdot\|_{v}$ (Bertsekas et al., 1989,1991)

    • Under Assumption 7

      $V^*$ is a unique stationary point regarding $T$ (Bertsekas et al., 1989, 1991)

Given the following
